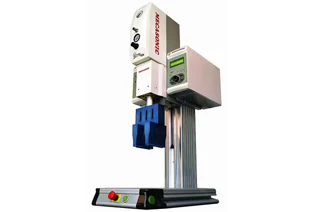

MCS2 Ultrasonic Welding Machine with 20KHZ Frequency 2000W Power and 80*100mm Welding Area for Plastic Welding

Name: MCS2 Ultrasonic Welding Machine with 20KHZ Frequency 2000W Power and 80100mm Welding Area for Plastic Welding
Brand: MECASONIC
Price: 31 USD

China MCS2 Ultrasonic Welding Machine with 20KHZ Frequency 2000W Power and 80*100mm Welding Area for Plastic Welding wholesale

Place of Origin : France

Brand Name : MECASONIC

MOQ : 1

Price : $31,500

Voltage : 230V

Frequency : 20KHZ

Welding area : 80*100mm

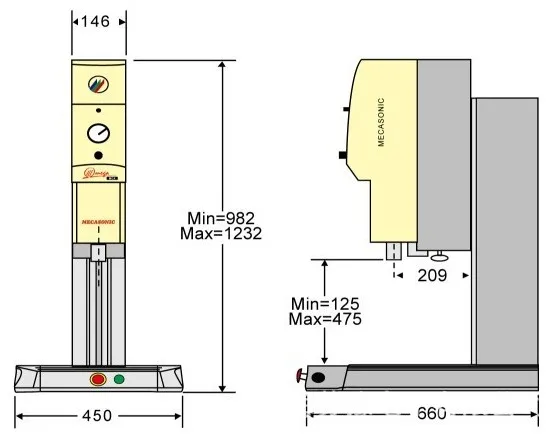

Dimensions : 450*650*1200mm

Weight : 97 KG

Power : 2000W

Cylinder diameter : ø63 (options: ø40, ø80, electronic type)

Stroke length : 100mm (option: 200mm)

Height adjustment : 350mm

Amplitude modes : 3 preset modes

Welding modes : Time, energy, descending height, welding depth

Monitoring parameters : Time, energy, descending height, welding depth

Generator type : High Frequency Ultrasonic

Noise level : Low

Operation security : Password-protected operation

Contact Now

Product Description

1) Flexible program design, so that the welding machine can run the machine through different adjustment standards. 1.1 Application of welding parts; 1.2 Reading the welding effect; 1.3 The properties of plastics. 2) Various ways to turn off the ultrasonic machine. 3) Predetermine 3 kinds of amplitude modes to adapt to different plastic types of welding parts. 4) The machine can weld according to the time, energy, descending height, welding depth and other modes, and can run the RWS system (Reactive welding system) to ensure the best welding effect.

MCS2 Ultrasonic Welding Machine with 20KHZ Frequency 2000W Power and 80*100mm Welding Area for Plastic Welding

5) The RWS system independently developed by Mecasoni makes MCS2 a truly intelligent welding machine, which can bring better solutions for your parts welding. 6) Strict monitoring system, after each welding process is completed, 4 parameters (time, energy, descending height, welding depth) will be displayed on the screen. 7) The traceability of the monitoring system (MCS2 can print out the welding results for archiving). 8) Safe operation (Each machine has an operation password setting).

Specification

Cylinder mm	ø63 can choose ø40.80 and electronic type
Stroke mm	100 can choose 200
Height adjustment mm	350
Weight kg	97

Product Paramenters

Packing & Delivery

Certifications

Exhibition

Service & Customer

Company Profile

Founded in 2005, Shanghai Suyu Electronic Co., Ltd. is a professional plastic welding equipment and tooling manufacturer integrating R & D, production, sales and service. Its products include ultrasonic welding machine, hot plate welding machine, rotary friction welding machine, hot riveting welding machine, infrared wire welding machine, laser welding machine and automatic assembly welding detection line. We are located in Shanghai with convenient transportation. We have our own manufacturing plant and four subsidiaries. Our company is committed to strict quality control and considerate customer service. The plastic welding equipment and fixture produced by the company are sold well in domestic provinces and cities, and the products are exported to Poland, India, Brazil and other countries. We have established a branch office in India and a service department in Brazil. Whether you choose your current product from our catalog or seek engineering assistance for your application, you can consult our customer service center for your purchase requirements.

FAQ

1. who are we?
We are based in Shanghai, China, start from 2005,sell to Domestic Market(00.00%),Southeast Asia(00.00%),South America(00.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Automatic Assembly and Welding Detection Line,Ultrasonic Welding Machine,Filter Paper Welding Machine,Hot Plate Welding Machine,Spin Friction Welding Machine

4. why should you buy from us not from other suppliers?
Our company has rich experience in the design, manufacture and commissioning of "Plastic Welding" and "Industrial Automated Assembling and Testing" systems.Such as hot plate welding, ultrasonic welding, infrared welding and new technologies and so on.

5. what services can we provide?
Accepted Delivery Terms: EXW；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
