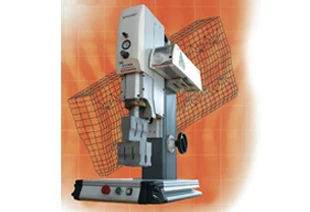

MECASONIC DG Series Ultrasonic Plastic Welding Machine with 220V 50Hz/60Hz Power 1 Year Warranty and Multiple Peripheral Device Interfaces

Name: MECASONIC DG Series Ultrasonic Plastic Welding Machine with 220V 50Hz60Hz Power 1 Year Warranty and Multiple Peripheral Device Interfaces
Brand: France
Price: 25 USD

China MECASONIC DG Series Ultrasonic Plastic Welding Machine with 220V 50Hz/60Hz Power 1 Year Warranty and Multiple Peripheral Device Interfaces wholesale

Place of Origin : France

Brand Name : France

MOQ : 1

Price : $25,500-28,000

Voltage : 220V

Frequency : 50/60Hz

Dimensions : 650(L)x450(W)x1200(H) mm

Weight : 100 kg

Power : 2000W

Cylinder diameter : ø63/ø40/80 mm or electronic type

Stroke : 100 mm

Height adjustment : 350 mm

Welding area : Depend

Pressure control : Pressure regulating valve

Speed control : Precision throttle valve

Display parameters : Time, energy, function, frequency

Remote capability : Remote debugging/monitoring via software

Body adjustment : Up/down lifting type with hand wheel

Interface compatibility : Soundproof room, rotating table, conveyor, electronic hand

Contact Now

Product Description

DG products have a variety of peripheral equipment interfaces, such as: soundproof room, rotating table, conveyor, electronic hand and so on.

MECASONIC DG Series Ultrasonic Plastic Welding Machine with 220V 50Hz/60Hz Power 1 Year Warranty and Multiple Peripheral Device Interfaces

1) The traditional high-level ultrasonic welding machine requires the operator to have a certain degree of professional knowledge, while the DG type operation breaks through the traditional way and is closer to the Chinese operating habits, simple and direct, one-click completion.

2) DG type as a standard welding machine, in order to adapt to the welding of more products, the welding body adopts up and down lifting type, and the height of the body can be easily adjusted through the hand wheel.

3) The pressure and speed of welding head lowering can be controlled by the pressure regulating valve and precision throttle valve of the machine head respectively.

4) Digital detection system DG has an intelligent digital detection system. After each welding is completed, various parameters (such as time, energy, function, frequency, etc.) will be displayed on the screen.

5) DG can also carry out remote debugging and monitoring through MECASONIC's special software.

Specification

Cylinder (mm)	ø63 ø40 80 can be selected or electronic type can be selected
Stroke (mm)	100
Height adjustment (mm)	350
Weight (kg)	100

Our company

SUYUSONIC

Founded in 2005, Shanghai Suyu Electronic Co., Ltd. is a professional plastic welding equipment and tooling manufacturer integrating R & D, production, sales and service.

Our products include ultrasonic welding machine, hot plate welding machine, rotary friction welding machine, hot riveting welding machine, infrared wire welding machine, laser welding machine and automatic assembly welding detection line.

We are located in Shanghai with convenient transportation. We have our own manufacturing plant and four subsidiaries in China.We have established a branch office in India and a service department in Brazil.Our company is committed to strict quality control and considerate customer service.

Packing & Delivery

Exhibition

Shen zhen

Poland

Service & Customer

Successful Project

Air filter Assembly Workstation

National Ⅵ canister assembly and testing line

Electronic handbrake Assembly(EPB) assembly/welding/inspection line

Do you want to get more cases?

Do you want to get a production line that suits you?

Certifications

FAQ

1. Who are we?
We are based in Shanghai, China, start from 2005,sell to Domestic Market,Southeast Asia,South America.
There are total about 101-200 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.

3.What can you buy from us?
Automatic Assembly and Welding Detection Line,Ultrasonic Welding Machine,Filter Paper Welding Machine,Hot Plate Welding Machine,Spin Friction Welding Machine.

4. Why should you buy from us not from other suppliers?
Our company has rich experience in the design, manufacture and commissioning of "Plastic Welding" and "Industrial Automated Assembling and Testing" systems.Such as hot plate welding, ultrasonic welding, infrared welding and new technologies and so on.

5. What information do you need to provide to receive a quote?
After the initial discussion to determine we are a good fit for your requirement, we will then ask you to provide us the component specifications, samples/drawings, production speeds and design specifications.
